Advance Settings

This section will help you tune advance configuration settings.

• Under-voltage & Pre-Load
• Over-voltage
• Boot Sequence (Tools menu)

Under-voltage & Pre-Load

You must configure the Under Voltage Limit to force a shutdown to all equipements during a voltage underload.

Installation voltage	Under Voltage Limit (VBatMin)
12V	9V
24V	20V

During the power-on of the Startup delay will start after the voltage reach the Under Voltage Limit. It ensures that battery precharging is complete and creates a sequential start-up of permanent devices to reduce the initial current peak.

graph LR
A[Power On]
    -->B[Wait\n Under Voltage Limit]
    -->C[Wait\n Startup Delay]
    -->D[Ready]

style A fill:#EF9A9A,stroke:#D32F2F
style D fill:#A5D6A7,stroke:#2E7D32

Over-voltage

You must configure the Over Voltage Limit to force a shutdown to all equipements during a voltage overload.

Installation voltage	Over Voltage Limit (VBatMax)
12V	16V
24V	30V

Boot Sequence (Tools menu)

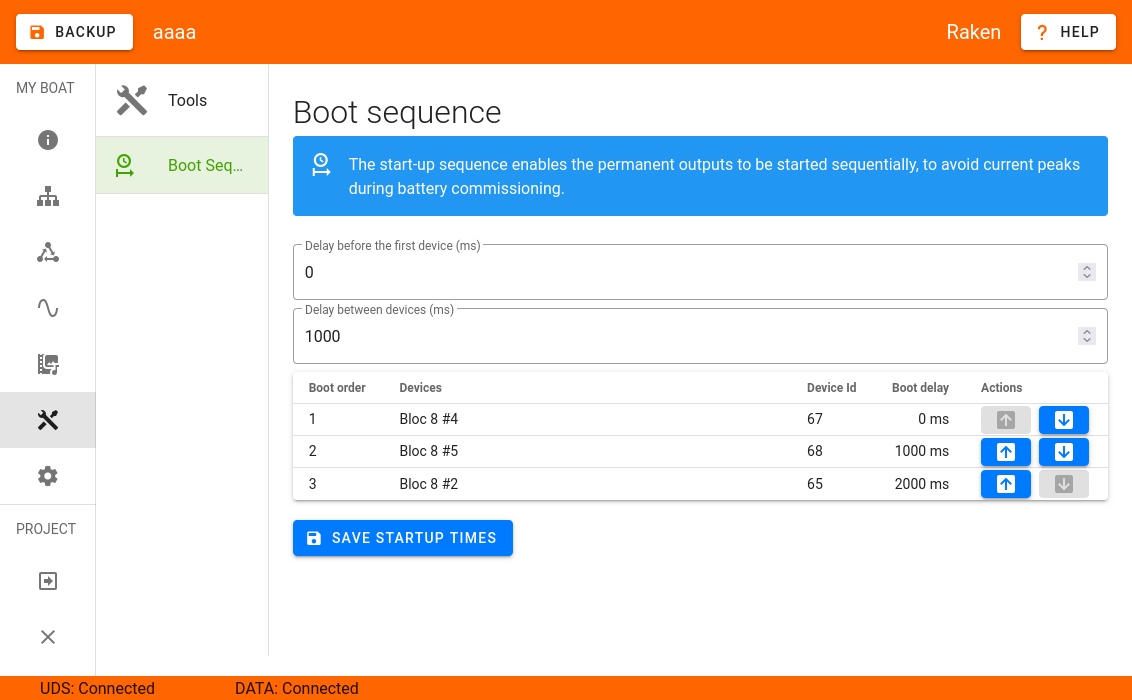

The boot sequence tool help you to configure the Startup Delay of each power distribution module. So, permanent outputs will be start sequentially, to avoid current peaks during battery commissioning.
