Sensors

The sensor section allow Raken to convert a digital or an analog input of a Muxen device into a physical variable. The variable will be available in the internal Brain data-bus to be display, or use into another application like the energy balance.

The sensor configuration will be applied when the project will be deployed.

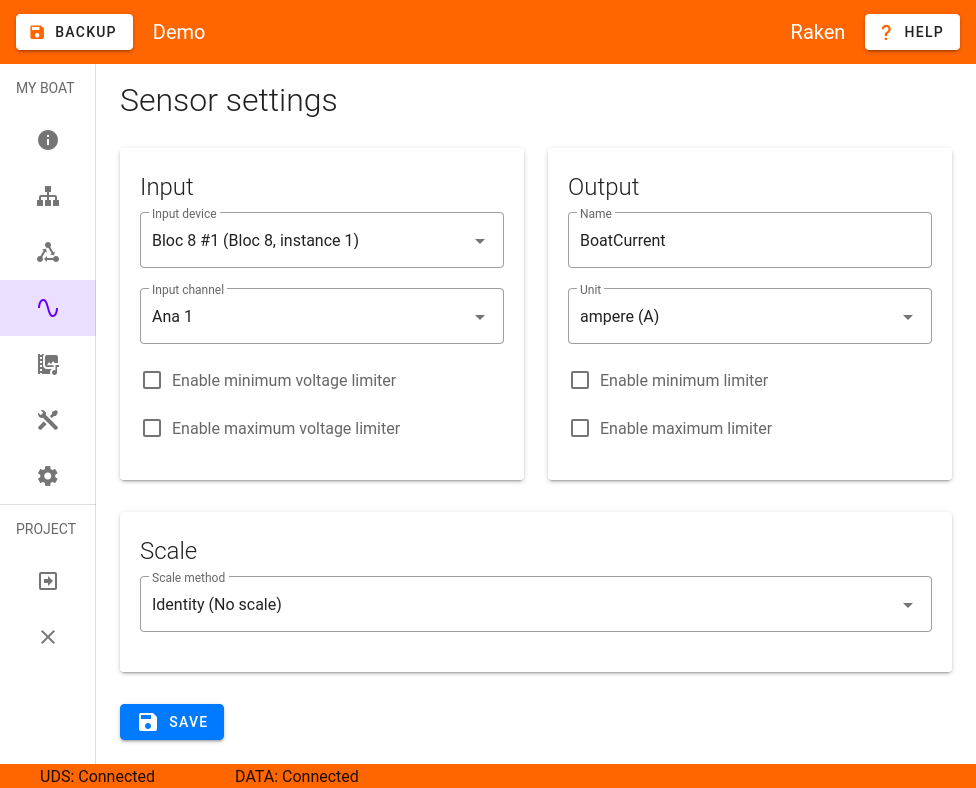

Sensor configuration

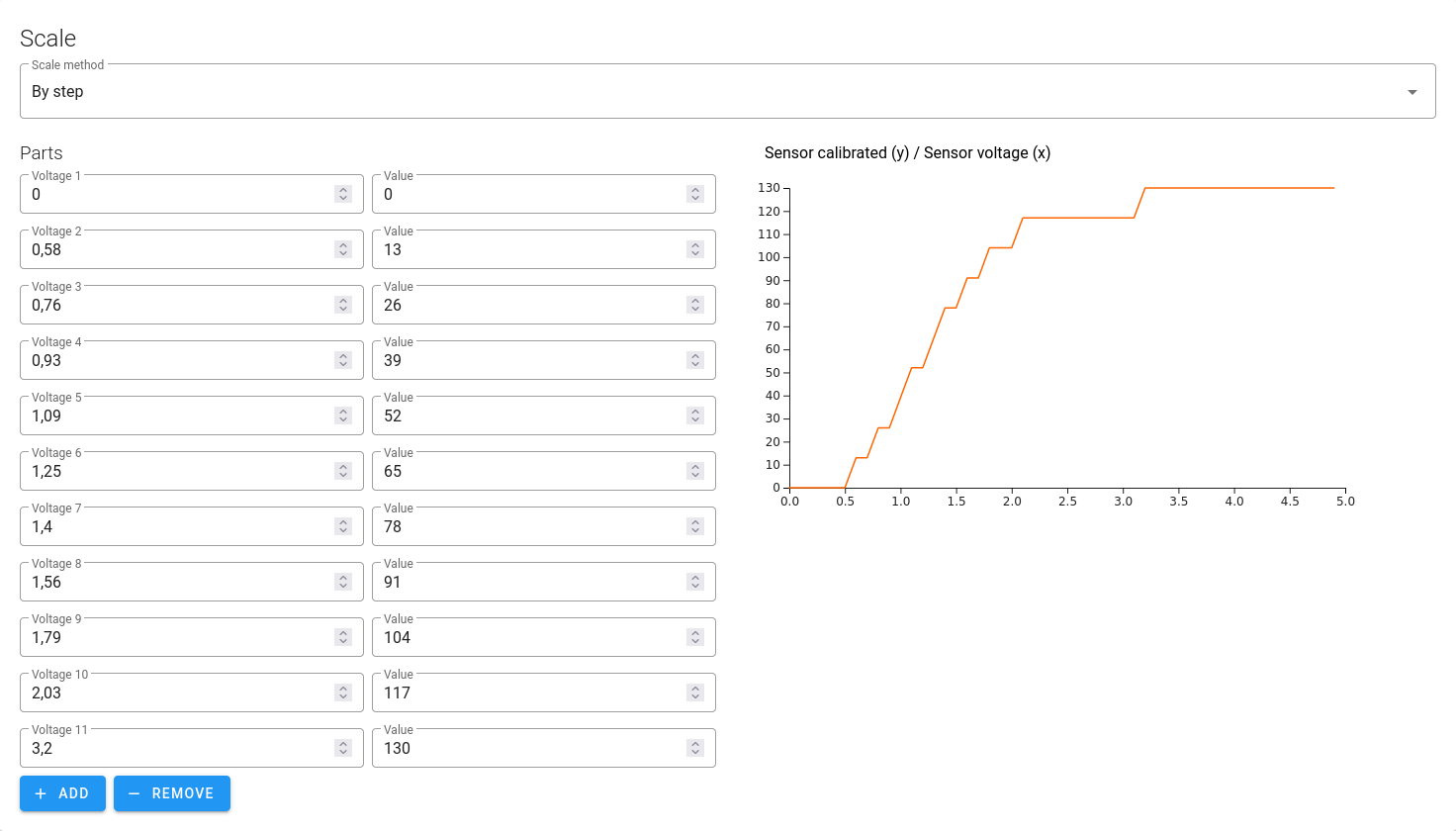

Scale by steps

Step scaling is used for non-linear sensors, such as tank gauges.

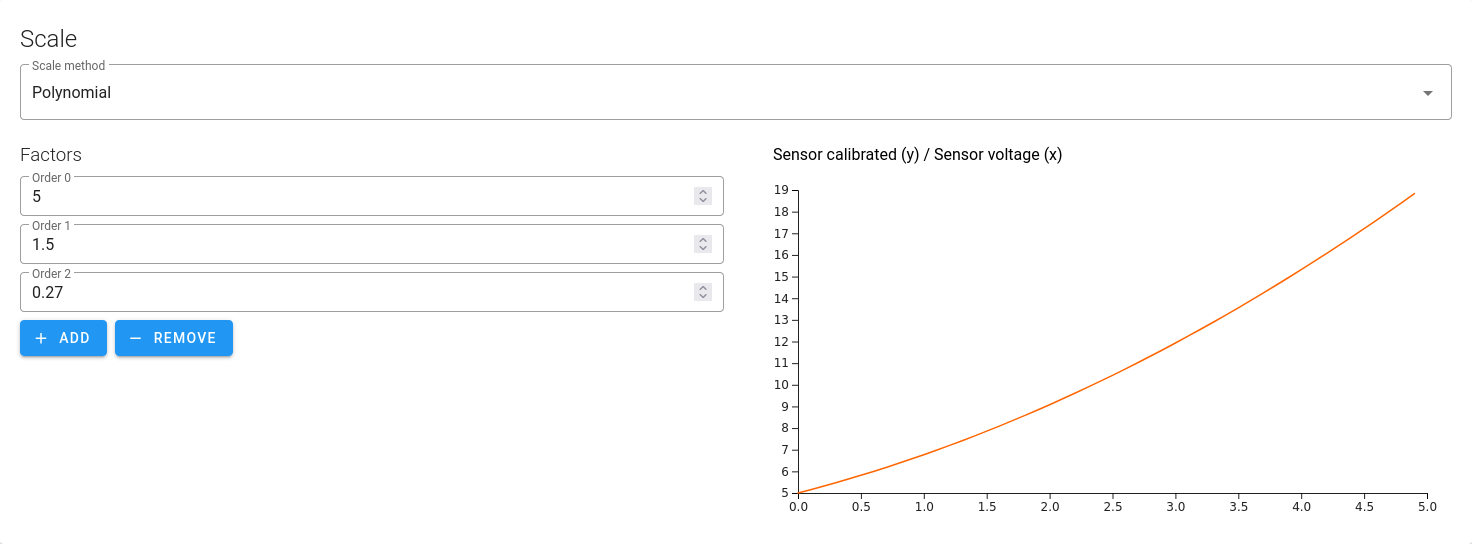

Scale by polynomial

Polynomial scaling is used for linear sensors, such as current or temperature transducers.

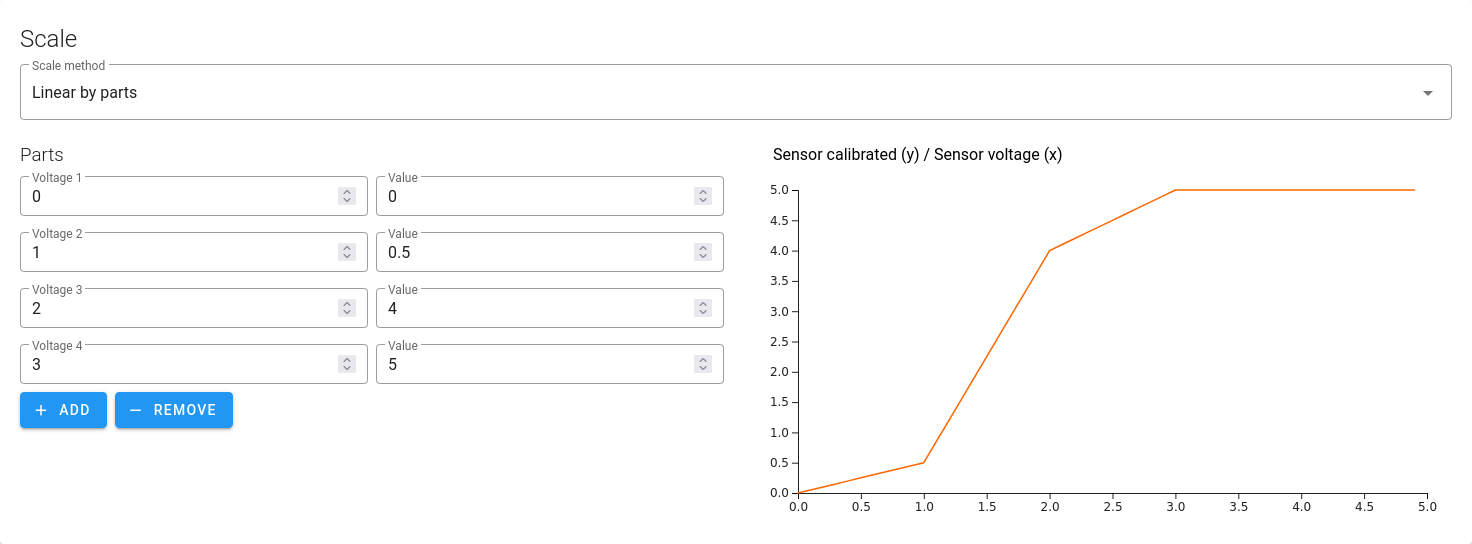

Scale by parts

Parts scaling is used for pseudo linear sensors, such as keel angular position.

Recommended parameters for Muxen sensors

M-CURRENT-SENSOR-01 (100/600A)

Parameter	Channel 100A	Channel 600A
Input minimum	0.5 V	0.5 V
Input maximum	4.5V	4.5V
Output minimum	-100	-600
Output maximum	100	600
Scale type	Polynomial	Polynomial
Factors Order 0	-125	-750
Factors Order 1	50	300

M-CURRENT-SENSOR-02 (50/200A)

Parameter	Channel 50A	Channel 200A
Input minimum	0.5 V	0.5 V
Input maximum	4.5V	4.5V
Output minimum	-50	-200
Output maximum	50	200
Scale type	Polynomial	Polynomial
Factors Order 0	-62.5	-250
Factors Order 1	25	100

Muxen Adaptateur 4/20mA - 0/5V (ref: 030010003)

Parameter	Channel 50A
Input minimum	0 V
Input maximum	5 V
Output minimum	0
Output maximum	0.020
Scale type	Polynomial
Factors Order 0	0
Factors Order 1	0.004
