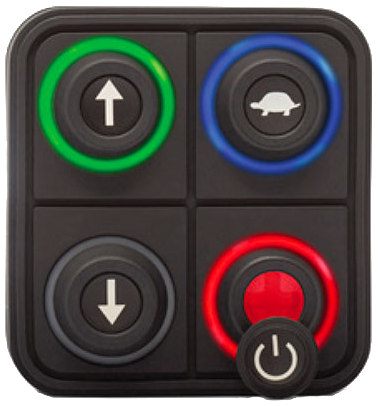

Blink Keypad

This section will help you to configure a Blink Keypad to be use into a Muxen network. The following procedure works on Keypad with 4, 6, 8, 12 keys.

The keypad will be configured in J1939 mode with a 500Kbits baudrate.

Switch from CanOpen to J1939

The default CanOpen node ID of blink keypad is 0x15 (21). Be Careful, the node ID may be different if you already use it.

615    [5]    2B FF 20 01 01

Set baudrate

Send the following request to your keypad, the CAN address will change based on the device instance number (xx).

18EFxx00    [8]    04 1B 6F 02 FF FF FF FF

If the blink keypad address is still 0x15 (21), you can use the following request.

18EF2100    [8]    04 1B 6F 02 FF FF FF FF

Set keypad address

Send the following request to your keypad, the CAN address will change based on the device instance number (xx). The wanted address will be YY.

18EFxx00    [8]    04 1B 70 YY YY FF FF FF

If the blink keypad address is still 0x15 (21), you can use the following request to set the address to 01.

18EF2100    [8]    04 1B 70 01 01 FF FF FF

Troubleshooting

Keyboard do not send key event

Ensure the parameter "EventStateTransmission" is set to enable.

18EF2100    [8]    04 1B 72 01 FF FF FF FF
